Y-ZHM 氣動活塞桿密封-防塵圈 |
|||||||||||||||||||
丁晴橡膠 -20~100℃
橡膠復合材料 -20~120℃
氟膠 -20~200℃
耐低溫材料 -60~-30℃
為本公司特色材料有著出色的耐磨,耐溫性能。
如有其它特殊要求(溫度,速度等)請與我公司聯系。以便向您推薦適合的材料和結構。

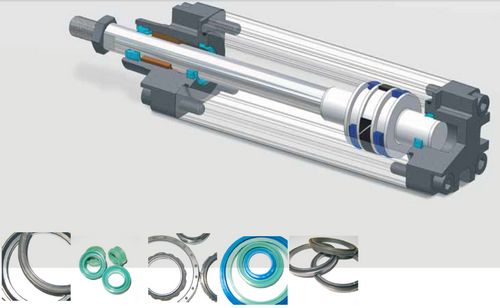

Q-ZHM系列氣動組合密封圈用于氣缸活塞桿處，起密封和防塵作用，工作壓力:≤1Mpa；工作介質:壓縮空氣

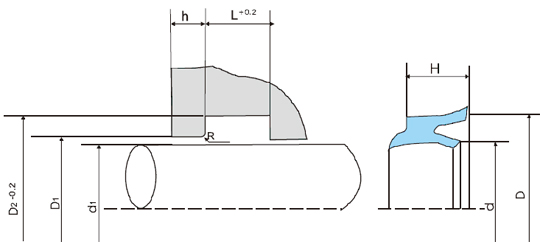

安裝尺寸
|
編號 |
D |
D |
H |
d1 |
D1 |
D2 |
L |
h≥ |
|
Y-ZHM-12 |
12 |
18 |
7 |
12 |
15 |
18 |
8 |
3 |
|
Y-ZHM-14 |
14 |
20 |
14 |
17 |
20 |
|||
|
Y-ZHM-16 |
16 |
22 |
16 |
19 |
22 |
|||
|
Y-ZHM-18 |
18 |
24 |
18 |
21 |
24 |
|||
|
Y-ZHM-20 |
20 |
28 |
8 |
20 |
24 |
28 |
9 |
|
|
Y-ZHM-22 |
22 |
30 |
22 |
26 |
30 |
|||
|
Y-ZHM-25 |
25 |
33 |
25 |
29 |
33 |
|||
|
Y-ZHM-28 |
28 |
36 |
28 |
32 |
36 |
|||
|
Y-ZHM-30 |
30 |
38 |
30 |
34 |
38 |
|||
|
Y-ZHM-32 |
32 |
40 |
32 |
36 |
40 |
|||
|
Y-ZHM-35 |
35 |
43 |
35 |
39 |
43 |
|||
|
Y-ZHM-36 |
36 |
44 |
36 |
40 |
44 |
|||
|
Y-ZHM-40 |
40 |
48 |
40 |
44 |
48 |
|||
|
Y-ZHM-45 |
45 |
57 |
11 |
45 |
50 |
57 |
12 |
|
|
Y-ZHM-50 |
50 |
62 |
50 |
55 |
62 |
|||
|
Y-ZHM-55 |
55 |
67 |
55 |
60 |
67 |
3.5 |
||
|
Y-ZHM-60 |
60 |
72 |
60 |
65 |
72 |
|||
|
Y-ZHM-63 |
63 |
75 |
63 |
68 |
75 |
|||
|
Y-ZHM-65 |
65 |
77 |
65 |
70 |
77 |
|||
|
Y-ZHM-70 |
70 |
82 |
70 |
75 |
82 |
|||
|
Y-ZHM-75 |
75 |
87 |
75 |
80 |
87 |
|||
|
Y-ZHM-80 |
80 |
92 |
80 |
85 |
92 |
|||
|
Y-ZHM-85 |
85 |
97 |
85 |
90 |
97 |
|||
|
Y-ZHM-90 |
90 |
102 |
90 |
95 |
102 |
