2. Standard Materials

Seal ring: NBR or FKM



3. Application Range

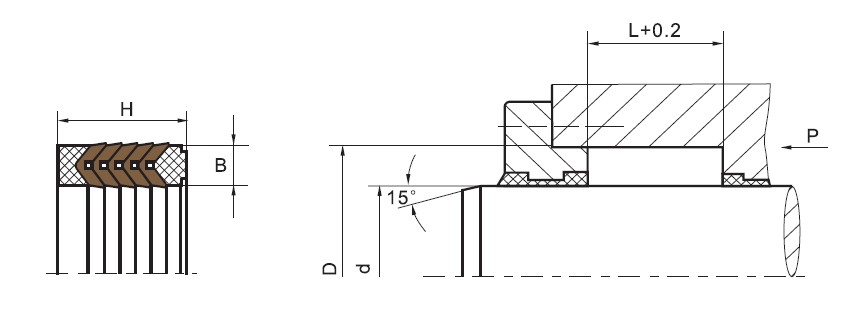

Vee Packings are multiple-lip (chevron) seals comprised of a group of endless rings and are popular for sealing rods and pistons. They can be used for low or high pressure applications and with single or double acting cylinders.





4. Characteristics

1- high sealing effect

2- allow a out-of-center loads, and exercise:
3- Multi-turn overlap can be used, and to reach the maximum sealing effect by adjusting the clamping force;
4- excellent Impact pressure and vibration-resistant pressure;
5-. When the filler cant be install through the rod, you can use to open the incision, the incision as long as each installation will be staggered, does not affect the seal effect. The disadvantage is that the friction resistance would be bigger than the other forming material.
