U型圈RU6-ZURCON U-CUP RU6

Description

Additional to the machined seals Stepseal  2K and Rimseal

for housings due to ISO 7425/2 (rubber energised plastic

seals) the U-Cup type RU6 has been developped as an

injection molded seal of polyurethane material to fit in the

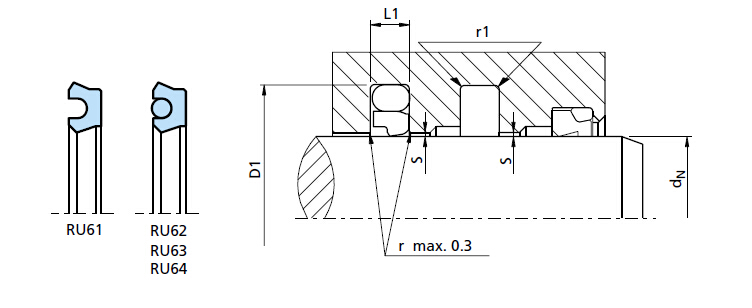

same ISO housings. The integrated NBR O—Ring (only

available for series RU62 - RU64) improves the

performance at low pressure and low temperature

applications. Polyurethan (Zurcon  Z20) is a proved

material for U-cups due to their good mechanical

properties.

Application Examples

- General hydraulic cylinders

- Injection molding machines

- Lift trucks

- Agricultural machines

Technical Data

Operating pressure: Max. 25 MPa (as single

element)

Speed: Up to 0.5 m/s

Temperature: Use in mineral oils:

-35°C to + 110°C

Media: Mineral oil-based hydraulic

fluids.

Material

The thermoplastic polyurethane material Zurcon  Z20 has a

high abrasion resistance, a low compression set and

exhibits a high resistance to clearance extrusion.

The integrated O—Ring is an NBR with 70 shore A and a very

low compression set.

U-Cup: polyurethane 93 shore A

material code Z20

O—Ring: NBR 70 Shore A

material code N

Set code: Z20N
