特康A(chǔ)Q封-Turcon AQ-seal

Walle sealing AQ-Seal is a double-acting seal consisting of a seal ring of high-grade modified Turcon material, an X-ring Seal and an O—Ring as an energizing element. Walle sealing seal ring and the X-ring Seal together assume the dynamic sealing function while the O—Ring performs the static sealing function.

Application Examples

Walle sealing AQ-Seal is the recommended sealing element for double-acting pistons of accumulators and positioning and holding cylinders for:

- Machine tools

- Presses

- Accumulators

- Stabilizers

- Heavy duty suspension cylinders

Technical Data

Operating

pressure: 5,800 psi (40 MPa)

Velocity: Up to 6.5 ft/s (2 m/s)

Temperature: -49°F to +392°F (-45°C to +200°C)  (depending on O—Ring and

X-ring Seal material)

(For applications at low temperatures

below -22°F (-30°C), please contact us).

Media: For all common hydraulic fluids,

including bio-oils and gases

Advantages

- High sealing effect in applications requiring media separation, e.g. fluid/fluid or fluid/gas

- Double security through the combination of low-friction special materials with elastomer seals

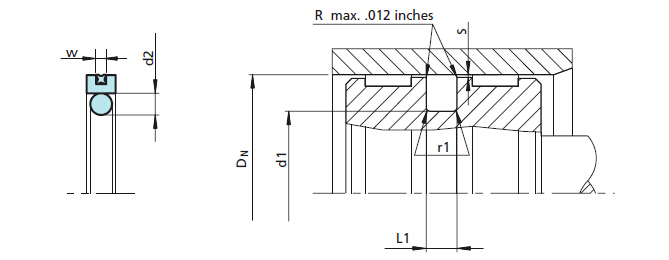

- Simple groove design, small installation space, interchangeable with Turcon Glyd Ring, Turcon Glyd

Ring T and Turcon Stepseal K installation according to ISO 7425/1

- Outstanding sliding properties, no stick-slip effect.
