特康泛塞密封件M2S型-Turcon Variseal M2S

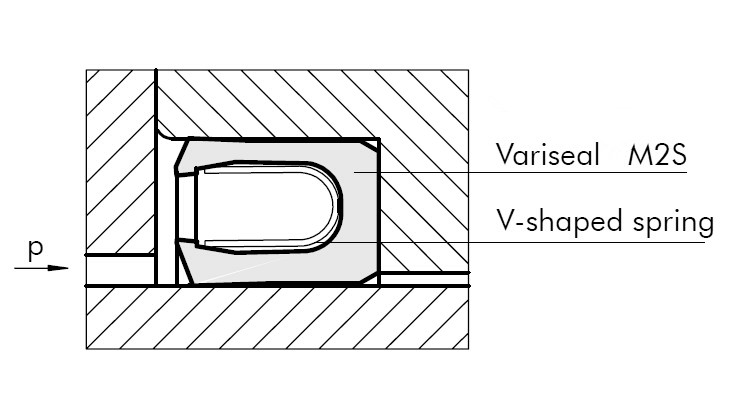

Walle sealing Variseal M2S is a single acting seal consisting of a U-shaped jacket and a V-shaped corrosion resistant spring.

Variseal M2S has an asymmetric seal profile. The heavy profile of its dynamic lip is optimized, offering long service life and a good scraping ability even in media with high viscosity.

Advantages

- Suitable for reciprocating and rotary movement

- Excellent scraping ability

- High abrasion resistance

- Dimensionally stable

- Resistant to most fluids and chemicals

- Safe for contact with food and pharmaceuticals

- Excellent resistance to ageing

- Can be sterilized

- Available in Hi-Clean version

- Interchangeable with O-Ring and Back-up Ring combinations to MIL - G - 5514F and ISO 6194

Technical Data

Operating

pressure: Maximum dynamic load: 45 MPa

(450 bar, 6527 psi)

Maximum static load: 60 MPa

(600 bar, 8702 psi)

Speed: Reciprocating up to 10 m/s (33 ft/sec)

Rotating up to 0.5 m/s (1.6 ft/sec)

Operating

temperature: -70 °C (-94 °F) up to

+260 °C (+500 °F)

Special TurconR and ZurconR

materials as well alternative spring

materials are available for

applications outside this temperature

range.

Media

compatibility: Fluids of medium to high viscosity or containing hard particles.

Note: At high temperatures operating

pressures and speeds are lower.

Standard Materials

Jacket: Material code T40

Spring material: Spring code S (stainless steel),

Material No. 1.4310 (AISI 301)

Areas of Application

- Hydraulic components with highly viscous media

- Food processing, for example bottling plants for dairy and food products

- Pharmaceutical and chemical industries

- Processing of sealing compounds, adhesives, pastes

- Media with particle ingress
