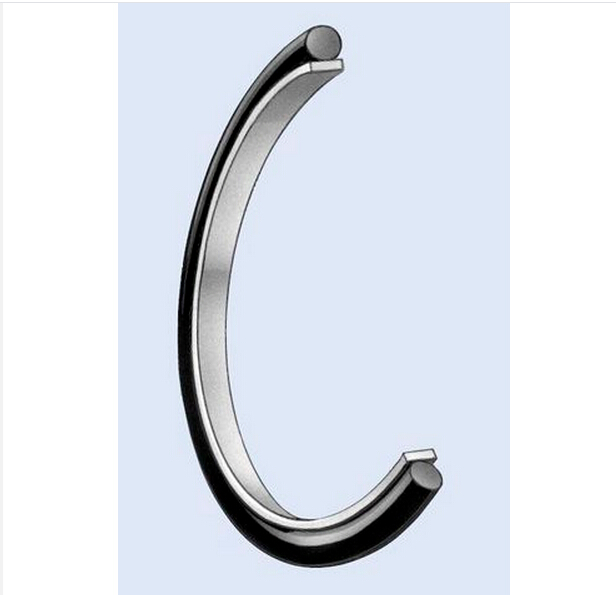

聚四氟乙烯密封件-Hunger GODI rod seals
Technial data:
Pressure(MPa):35
Temperature (C): -45/+200
Speed(m/s):1.5
Standard Materials
Seal ring : Filled PTFE or PU
O-Ring: NBR or FKM
The walle sealing slide and O-ring seal type GODI is a compact
seal for piston rods. It can be used for simple and
light-duty cylinder designs used in medium pressure
ranges.
The sealing effect is provided by the slide ring being
pressed against the sealing surface by the O-ring energiser
at pressure. The surface finish should be Ra 0.1 -
0.3 μm.
Compact design, good sliding properties and low breakaway
forces are the main features of this doubleacting
seal.
